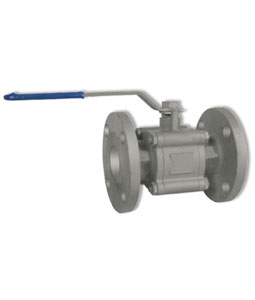

Click on image to enlarge
|
|
|
| FEATURES |
|
Features:-
-
Three Piece Full Bore Design.
-
Non - Fire Safe Design.
-
Minimum Pressure Loss & Increases Flow Capacity.
-
Pressure Rating Class : 150# & 300#
-
Ball are made from Bar Stock Only.
-
Ball Valve available in Socket Welded End Connection also.
|
| |
| Size |
: |
25NB To 300NB |
| Temperature Range |
: |
- 20*C to 300*C |
| Seat |
: |
P.T.F.E. |
| End Connection |
: |
Flange End & Thread End (BSPP/NPT) |
| Mfg Std |
: |
API 602 / BS5351 |
| Application |
: |
Air, Gas,Steam & Liquid |
| Testing Std |
: |
API 598/ BS 5146 |
| Face to Face Dimension |
: |
ANSI B 16.10 |
| Design |
: |
Three Piece |
| Working Pressure |
: |
Upto 25Barg |
| Body |
: |
ASTM A 216 GR.WCB/ A105 / CF8 / CF8M & Cast Iron |
| Trim |
: |
AISI S.S.304 & 316 |
| Handle |
: |
S.S.202 & M.S. |
| Stem |
: |
S.S.304 & 316 |
|
| |
| DOWNLOADS |
|
pa1_BALL VALVE FE_2014052256.pdf
|
| |
|
|
| |
| TESTING |
| HYDRAUSTATIC TEST PRESSURE |
| CLASS |
BODY |
SEAT |
| 150 |
32 Kg./cm2 |
23 Kg./cm2 |
| 300 |
80 Kg./cm2 |
58 Kg./cm2 |
| 800 S/E |
210 Kg./cm2 |
60 Kg./cm2 |
|
|
| |
|
|
| |
|
|
| |
